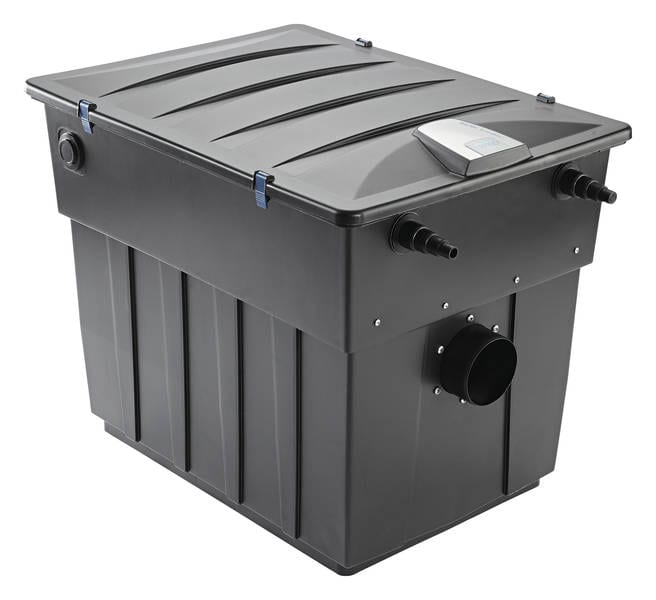

Oase BioTec ScreenMatic Pond Filter - 90000
The Oase ScreenMatic will give you clear and healthy pond water with minimum maintenance requirements.

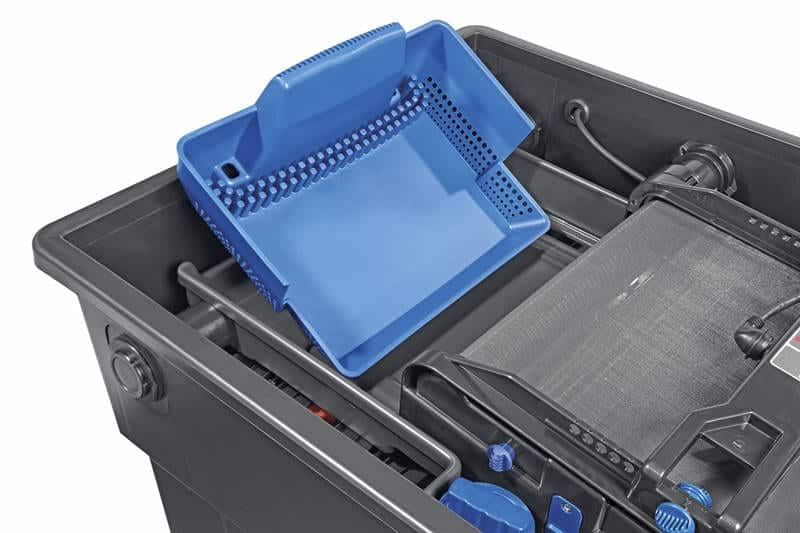

Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter. Continuous belt filter at an affordable price. Comes with the Oase Clear Water Guarantee. Significantly less maintenance is required, thanks to coarse debris extraction.

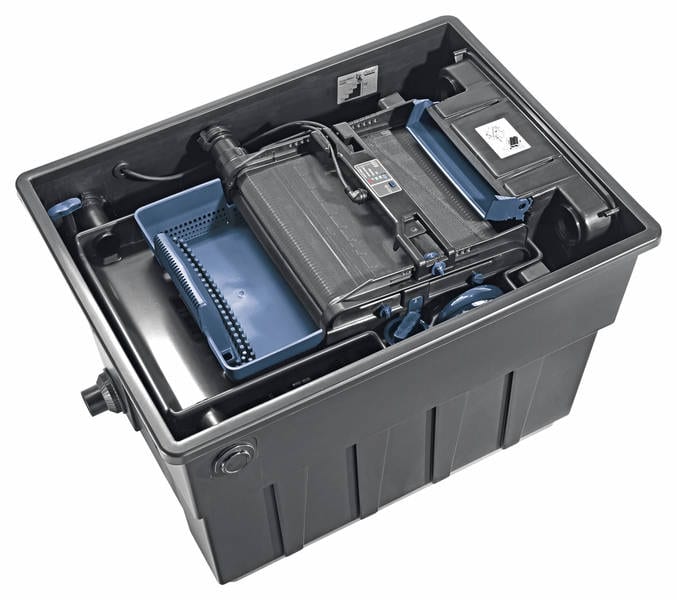

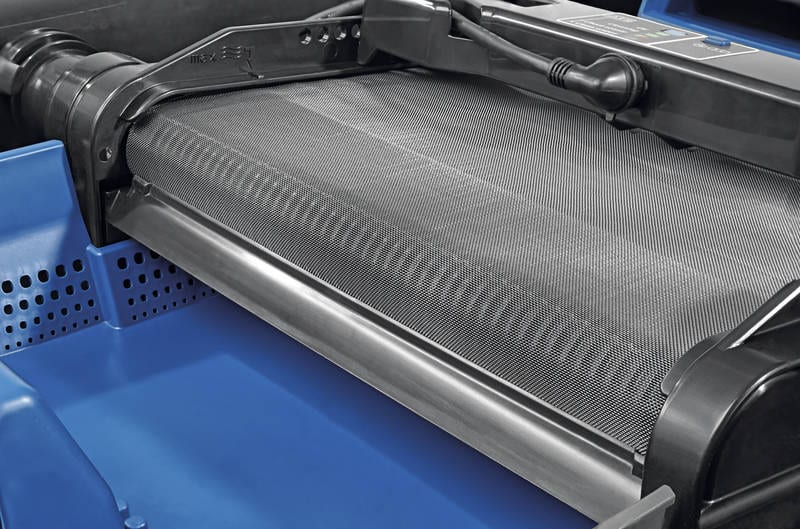

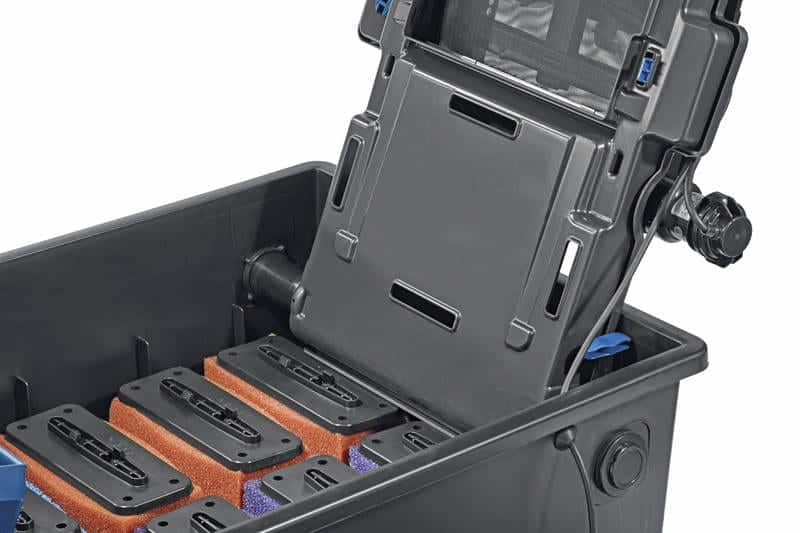

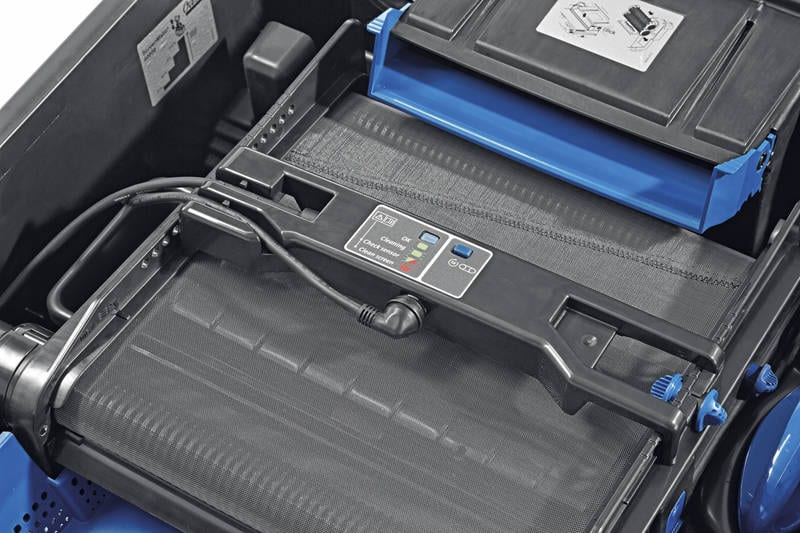

More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable Cleaning Sensor controls the belt run, depending on the degree of pollution. Includes LED function check. Cleaning of filter sponges directly in the filter, without removal. Sludge drain with slide valve for removing debris from the filter system.
https://youtu.be/g8ID7YyEdmY
Oase BioTec ScreenMatic Pond Filter - 90000
TECHNICAL DATA
| Dimensions filter (L x W x H) | mm | 788 x 590 x 645 |
|---|---|---|
| Net weight | kg | 27.00 |
| Rated voltage (primary, secondary) | 230 V / 50 Hz, 12 V / AC | |
| Power consumption | W | 5 |
| Cable length 12 V device (with power unit) | m | 2.10 (Power unit) + 5.00 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |

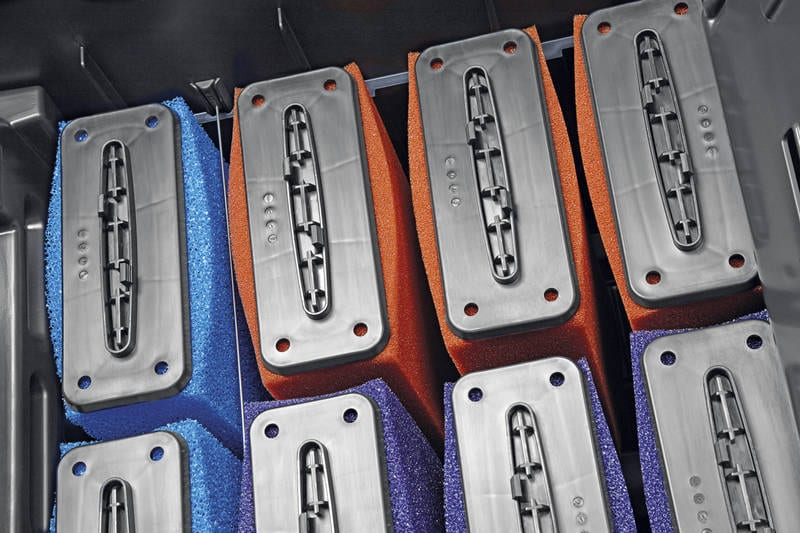

| Number of filter foams, total | Units | 16 |
| Number of blue filter foams | Units | 4 |
| Number of red filter foams | Units | 6 |
| Number of purple filter foams | Units | 6 |
| Special filter granulate | kg | 5.00 |
| Temperature display | No | |
| Coarse debris extraction | µm | 300 |
| Connection inlet filter | mm | 25 / 38 / 50 |
| Connection inlet filter | 1", 1 ¼", 1 ½" | |
| Connections, outlet filter | 2", DN 110 | |
| Sludge discharge connections | DN 50 | |
| Max. flow rate | l/h | 12500 |
| Suitable for ponds up to max. | m3 | 90.0 |
| Suitable for ponds with fish stock | m3 | 45.0 |
| Suitable for ponds with koi | m3 | 22.5 |
| Connection to | Bitron C 36 - 110 W, Bitron Eco 120 - 240 W |
