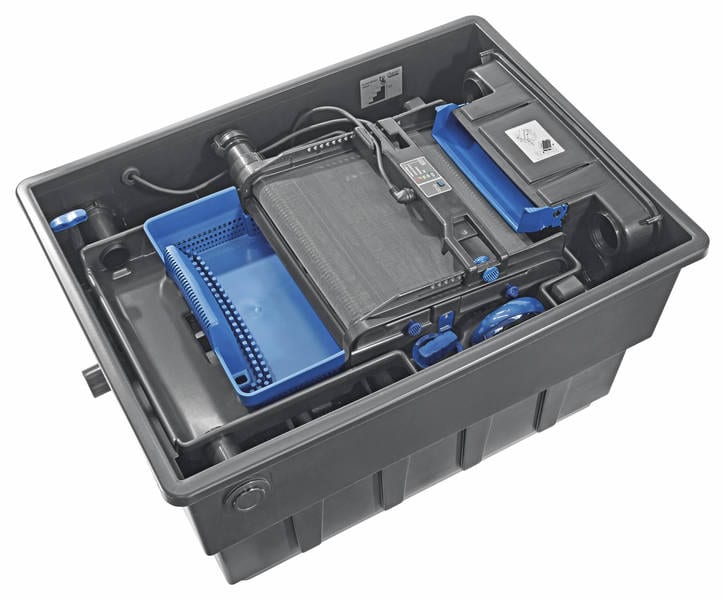

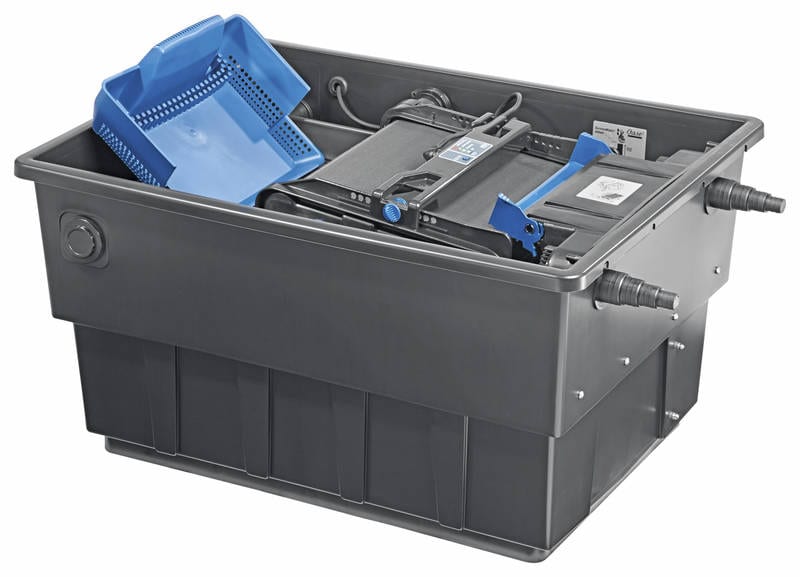

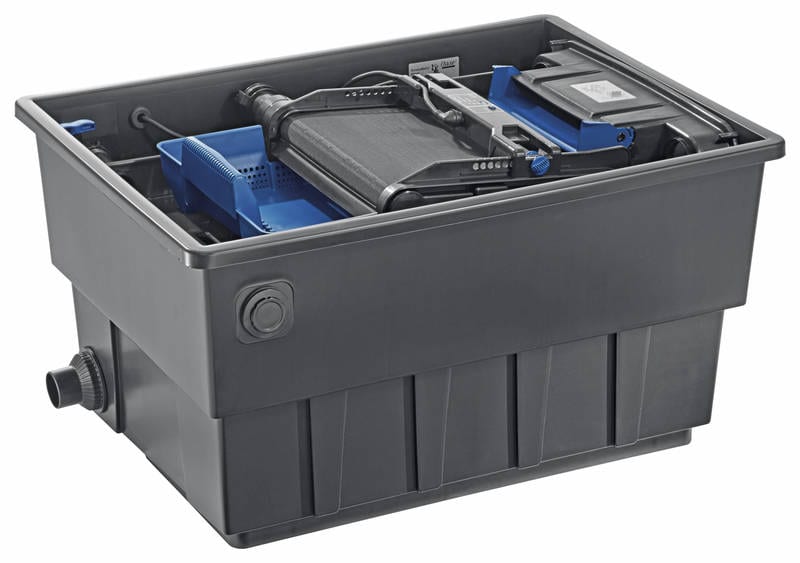

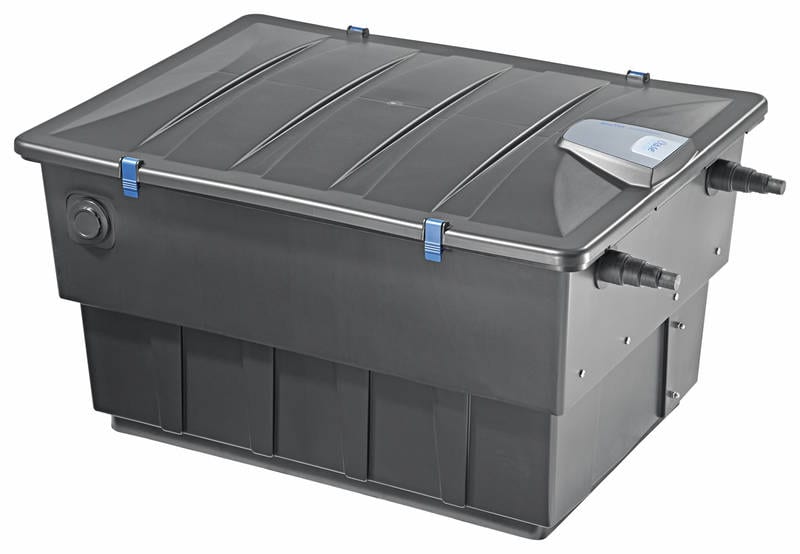

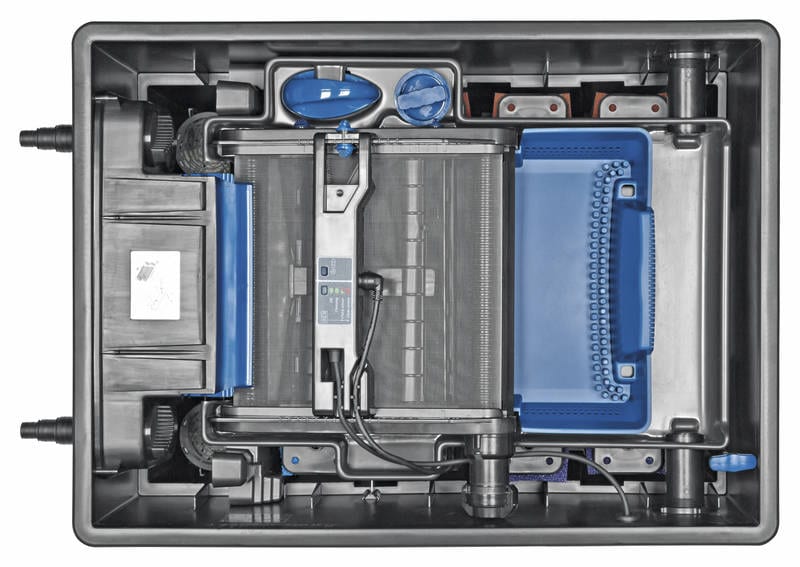

Oase BioTec ScreenMatic Pond Filter - 40000
Highly effective flow-through filter for ponds up to 60m3, which requires very little maintenance because the coarse dirt is separated before entering the filter and it has a long service life: The double-sealed motor ensures a much longer service life. The adjustable automatic cleaning system ensures an efficient separation result. A water distributor without bottlenecks prevents blockages. Innovative dirt barriers prevent the filter from being washed out. The cleaning is very convenient: The filter belt cleans itself and the filter sponges are cleaned directly in the filter.
High Quality Filter Foam - Different types of filter foam with various pore sizes ensure optimal biological and chemical filtration.

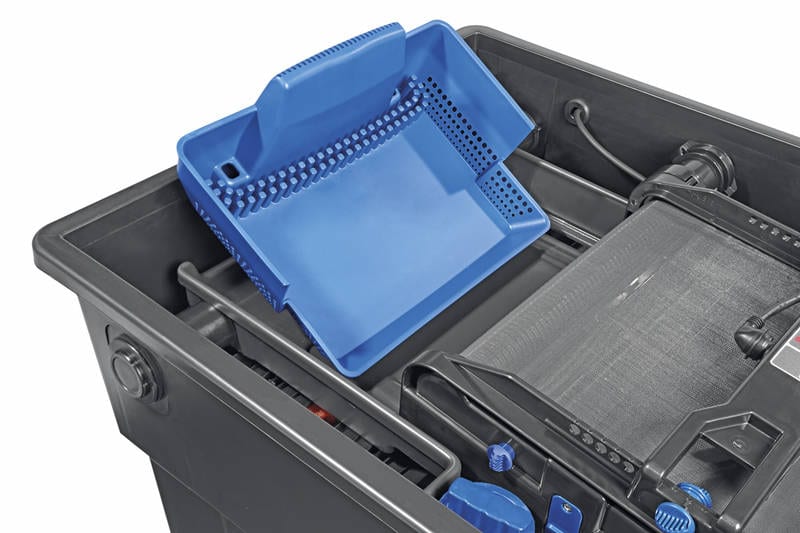

Integrated Debris Basket - Filtered Debris can be conveniently removed and cleared from the filter system

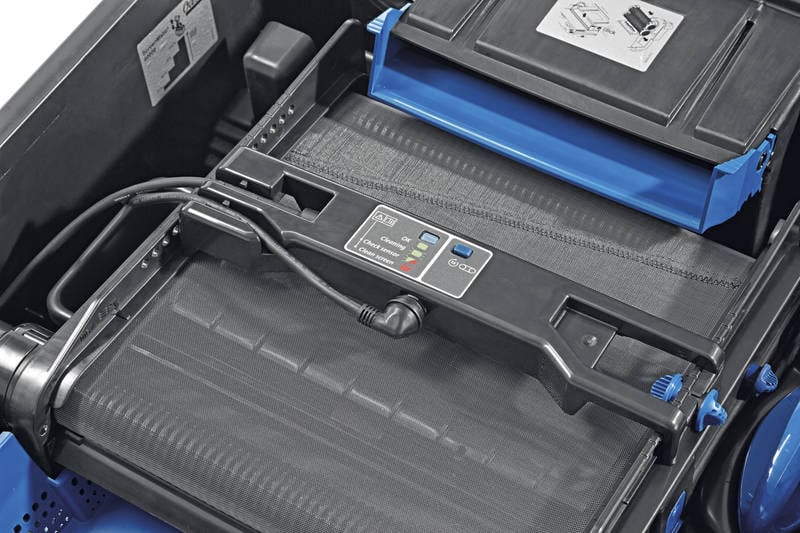

Intelligent Function Checks - Sensors detect the pollutant level and automatically activate the belt run. An LED display shoes the required cleaning measures.

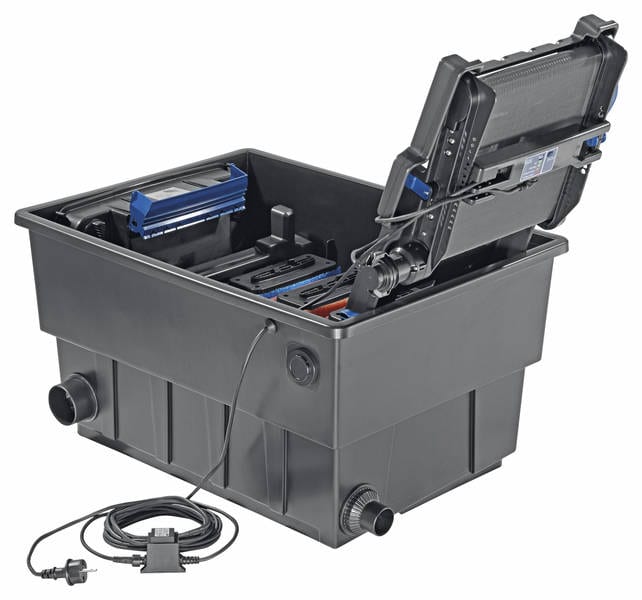

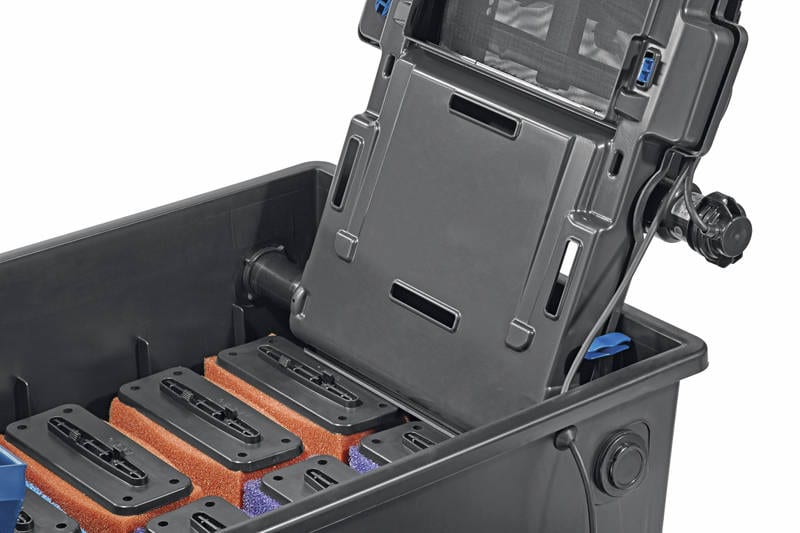

Optimised belt - The cleaning belt can be easily folded to make it easy to clean the filter foam.
If you require any advice on this Oase BioTec ScreenMatic Pond Filter or whether it's the right filter for your pond, please contact us and a member of our friendly pond team will be able to answer all your questions.
https://youtu.be/g8ID7YyEdmY
Dimensions filter (L x W x H) | mm | 788 x 590 x 445 |
Net weight | kg | 20.00 |
Rated voltage (primary, secondary) | 230 V / 50 Hz, 12 V / AC | |
Power consumption | W | 5 |
Cable length 12 V device (with power unit) | m | 2.10 (Power unit) + 5.00 |
Guarantee (+ request guarantee) | Years | 2 + 1 |
Number of filter foams, total | Units | 8 |
Number of blue filter foams | Units | 2 |
Number of red filter foams | Units | 3 |
Number of purple filter foams | Units | 3 |
Special filter granulate | kg | 2.50 |
Temperature display | No | |
Coarse debris extraction | µm | 300 |
Connection inlet filter | mm | 25 / 32 / 38 |
Connection inlet filter | 1", 1 ¼", 1 ½" | |
Connections, outlet filter | DA 75 | |
Sludge discharge connections | DN 50 | |
Max. flow rate | l/h | 9000 |
Suitable for ponds up to max. | m3 | 40.0 |
Suitable for ponds with fish stock | m3 | 20.0 |
Suitable for ponds with koi | m3 | 10.0 |
Connection to | Bitron C 36 - 110 W, Bitron Eco 120 - 240 W |
