Description

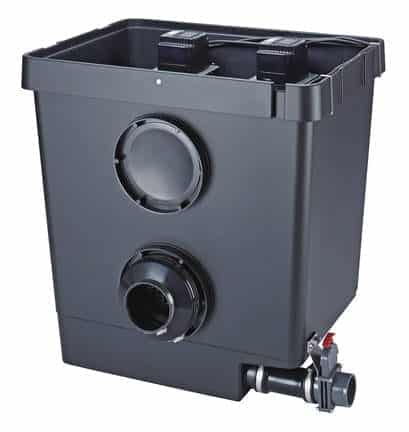

Oase ProfiClear Pump Chamber Compact/Classic

The Oase ProfiClear Pump Chamber Compact/Classic is designed to provide a practical, properly positioned home for the return pump at the end of a compatible gravity-fed ProfiClear filtration system. Rather than installing the pump separately, the chamber integrates it neatly into the filtration line, helping to reduce pressure losses while making access for maintenance and winter care considerably easier.

It is designed for integration with ProfiClear Premium Compact and ProfiClear Classic gravity-fed systems and can accommodate compatible AquaMax Eco Gravity pumps and Bitron Gravity UVC units.

Oase ProfiClear Pump Chamber for Gravity-Fed Systems

The Oase ProfiClear Pump Chamber sits at the return end of the filtration system, allowing the pump to operate in a flooded position rather than having to draw water through additional pipework.

This arrangement helps minimise pressure losses and creates a tidy, accessible installation for larger ponds and koi filtration systems.

Integrated Sediment Chamber

Any heavier debris that settles within the unit collects in the sedimentation area at the bottom of the chamber.

This can then be discharged through the DN75 bottom drain, helping prevent excessive accumulation of silt and making routine cleaning considerably easier.

Flexible Pump & UVC Installation

The chamber offers several connection options and allows compatible equipment to be incorporated without unnecessarily complicated external plumbing.

Two DN110 outlets allow the energy-efficient integration of up to two Bitron Gravity UVC units, while the chamber can also accommodate compatible AquaMax Eco Gravity pumps.

Built for Large Pond Filtration

With a maximum specified flow rate of 25,000 litres per hour, this is a substantial piece of filtration equipment intended for correctly designed ProfiClear installations rather than a general-purpose pump box.

Always plan pipework, pump selection and installation height around the requirements of the complete filtration system.

Specifications

• Dimensions: 830 × 665 × 820mm (L × W × H)
• Maximum Flow Rate: 25,000 litres per hour
• Material: GRP Duroplast / stainless steel
• Weight: 35.75kg
• Inlet Connections: 1 × DN185 + 2 × DN110
• Outlet Connections: 1 × 2″ + 2 × DN110
• Sludge Discharge: DN75
• Installation Height Above Water Level: 10.5cm
• Suitable Systems: Gravity-fed and pump-fed installations
• Compatible With: AquaMax Eco Gravity, Bitron Gravity and ProfiClear Classic

If you require any advice on this Oase Proficlear Pump Chamber Compact/Classic or whether it’s the right filter for your pond, please contact us and a member of our friendly pond team will be able to answer all your questions.

More technical information available at Oase
