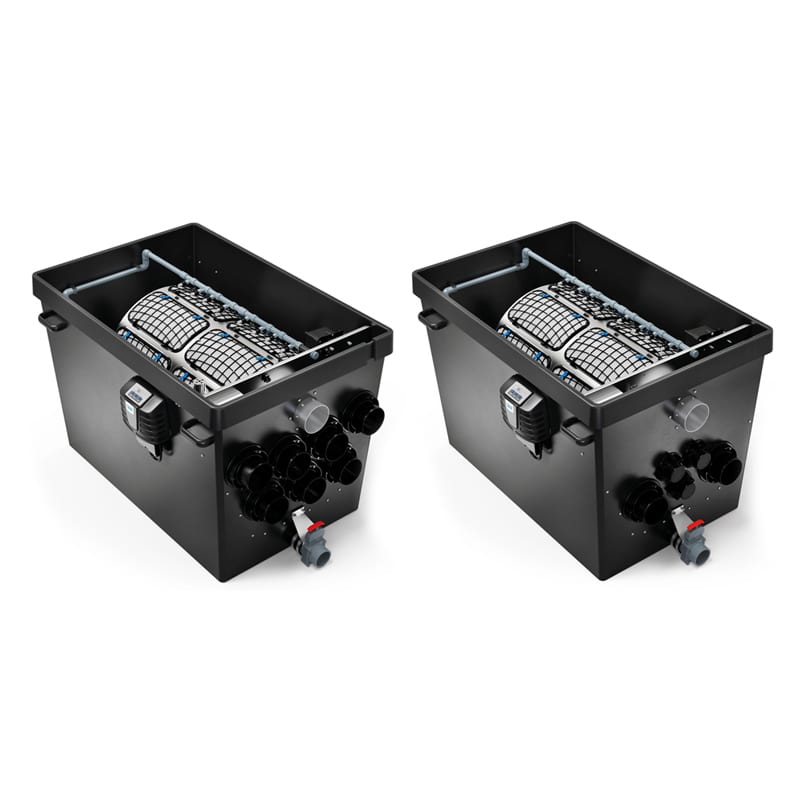

Oase ProfiClear Premium XL EGC Pond Filter
Professional modular filter system for large natural and swimming ponds up to 530 m³ and koi ponds up to 100 m³ for excellent water quality in the smallest of spaces - thanks to particularly high filter performance with intelligent control functions and intelligent self-cleaning function for unique freedom from maintenance (drum filter module). All settings can be conveniently controlled via APP by integrating the system into the OASE Control System (EGC). The degradation of pollutants is even more effective thanks to high-performance filter media OASE PondPads and develops its optimum performance in the new fluidized bed process (moving bed). For large pond owners who want more, high degradation rates of ammonium, ammonia, nitrite and nitrate through larger moving bed modules for up to 150 l Hel-X ensure even more performance, especially in combination with the new biofilter media OASE PondPads.
- Modern modular filter system for professional water quality where space is at a minimum
- Mature, professional technology with more than three years of development time
- Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
- Conveniently control all settings via an app with connection options for the OASE Control system; Existing systems can be upgraded using the separately available upgrade kit
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Outstanding filter capacity with intelligent control functions
- Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product "Made in Germany" (except pressure pump)
- System requirements: A Garden Controller Home/Cloud or InScenio FM-Master Home/Cloud is required to use the OASE Control functions.
| Net weight | kg | 130.50 |
| Warranty | Years | 2 + 1 |
| Number of sieve elements | Units | 16 |
| Number of inlets | Units | 5 |
| Number of outlets | Units | 2 |
| Outlet connections | 180mm | |
| Sludge discharge connections | DN75 | |
| Min. flow rate | l/h | 25000 |
| Max. flow rate | l/h | 50000 |
| Connection to | Bitron Premium, ProfiClear Premium XL pump-fed drain module, ProfiClear Premium XL Moving Bed | |
| Installation height above water level | cm | 52.0 |
| Type of use | Pump fed system | |
| Other | Pollutant discharge incl. slide valve | |
| Power consumption, cleaning | W | 1600 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 8 x 2.5 l/min | |
| Scavenging pump | 7bars | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Filter intake surface | cm2 | 6900 |
| Inlet connections | 3 x 2" / 2 x DN 110 | |
| Flush through connection | DN110 |
This Oase ProfiClear Premium XL EGC Pond Filter is available to order however lead times may vary. If you'd like more information please get in touch!
Available Models:
Pump Fed
Gravity Fed
Love Koi and ponds? Why not check out our sister site Shirley Koi where you'll find our finest premium Japanese Koi available for sale!
Additional information
| Model | Gravity Fed, Pump Fed |
|---|---|
| Brands | OASE |
