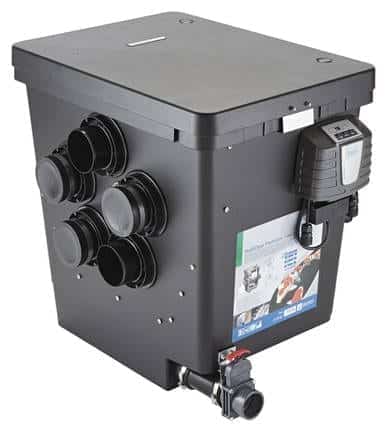

Oase ProfiClear Premium DF-L Gravity Fed Pond Filter

The Oase ProfiClear Premium DF-L Gravity Fed is a professional self-cleaning pond drum filter designed for large ponds, koi ponds and high-performance gravity-fed filtration systems.

Installed at pond water level and supplied through bottom drains and/or skimmers, the DF-L provides the mechanical filtration stage of a modular koi pond filtration system, automatically removing suspended solid waste before the water passes to biological filtration.

Unlike the ProfiClear Compact models, the DF-L is designed as a dedicated mechanical drum filter module, allowing separate ProfiClear biological and discharge modules to be selected according to the requirements of the pond. Oase describes the ProfiClear Premium range as a professional modular filtration system designed to achieve high water quality while keeping installation space relatively compact.

Gravity Fed Drum Filter for Koi Ponds

The Gravity Fed Drum Filter is particularly well suited to purpose-built koi ponds where bottom drains and skimmers can feed water directly into the filtration system.

Solid waste is removed mechanically before reaching subsequent biological filtration stages, helping prevent fish waste, uneaten food and other debris from accumulating elsewhere within the system.

This makes the ProfiClear Premium DF-L an excellent foundation for a large koi pond filter system, where high circulation rates and effective solids removal are particularly important.

Automatic Self-Cleaning Pond Filter

Fine drum screens separate suspended debris from the incoming pond water. As the screens become loaded with waste, the control system automatically initiates a cleaning cycle.

The drum rotates while its high-pressure rinse system washes accumulated debris into the waste channel for discharge.

Cleaning can be triggered automatically by the sensor, at timed intervals or manually, greatly reducing the routine maintenance associated with conventional mechanical pond filters.

Gravity Fed Pond Filtration

A gravity-fed pond filter works differently from a pump-fed system.

The drum filter is installed with its operating water level matched to the pond. Water then travels naturally from bottom drains and skimmers into the filter before a pond pump returns the cleaned water to the pond.

For new koi pond installations, this arrangement can provide excellent circulation while allowing solid waste to reach the mechanical filter before being broken up by a pump.

It also allows multiple pond feeds to form part of a properly designed bottom-drain koi pond filtration system.

Modular ProfiClear Pond Filter System

The DF-L provides the mechanical stage rather than trying to fit every filtration process into a single unit.

It can be combined with compatible ProfiClear Premium Moving Bed, Standing Bed, Individual and Discharge modules, allowing biological filtration and system layout to be configured around the pond. Oase lists these modules as part of the same ProfiClear Premium family.

This modular approach is particularly useful for heavily stocked koi ponds because additional biological capacity can be incorporated according to fish load, feeding rate and required turnover.

Fine Mechanical Filtration for Koi Ponds

Efficient mechanical filtration is particularly valuable on heavily stocked koi ponds.

Removing solid waste early in the filtration process reduces the amount of debris reaching biological media and prevents larger quantities of organic material from simply collecting within the filter system.

The ProfiClear drum therefore acts as the first stage of a complete mechanical and biological koi pond filtration system, rather than replacing the biological filtration required to process dissolved fish waste.

Oase Control Compatible

The ProfiClear Premium range supports integration with the Oase Control system, providing additional monitoring and control options for compatible installations.

This is particularly useful on larger pond systems where filtration, pumps and other compatible Oase equipment are being incorporated into a connected pond-management system.

Why Choose a Gravity Fed Drum Filter?

For a new or purpose-built koi pond, gravity-fed filtration has several advantages.

Bottom drains can continuously draw water and settled waste towards the filter, while skimmers deal with floating debris from the surface. The drum then removes solids before the water progresses through the remaining filtration stages.

The result is a filtration layout particularly well suited to:

• Large koi ponds
• Heavily stocked fish ponds
• Bottom-drain pond systems
• High-flow pond filtration
• Multiple skimmer and bottom-drain installations
• Modular mechanical and biological filtration systems
• Large ornamental ponds

For koi ponds, we’d recommend sizing the complete filtration system according to fish stock, expected adult size, feeding rate and required pond turnover, rather than relying solely on a manufacturer’s maximum pond-volume figure.

If you have any questions on this proficlear premium DF-Lpond filter or whether it’s the right filter for your pond, please contact us and a member of our friendly pond team will be able to answer all your questions.
