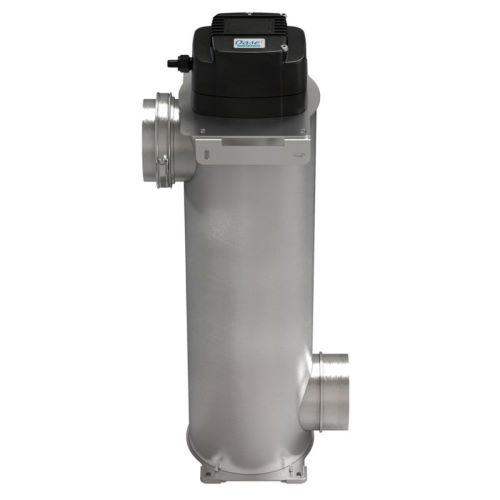

Bitron Premium UVC Clarifier 60W
The highly efficient UVC clarifiers in the Bitron Premium range are suitable for ponds up to 90 m³ and are extremely powerful in removing algae and pathogenic bacteria - in the same way as a submersible UVC. They offer 100% protection against eye damage, are particularly energy efficient thanks to an electronic ballast and are exceptionally effective in disinfection thanks to the long dwell time of the water in the Bitron. The flow-optimized reactor design ensures direct and almost loss-free UV radiation. A Bitron Premium can be connected very flexibly before or after the ProfiClear filter system - i.e. also in other gravity applications. If the pond or fish population increases, additional Bitron Premium UVC devices can be added at any time, and they can also be installed horizontally or vertically. Depending on requirements, the lamps on the Bitron Premium 120 W and 180 W can be switched individually.
- 100% protection against eye damage
- Energy efficient thanks to electronic ballast
- Exceptionally effective sterilisation thanks to the long retention time of the water in the Bitron
- Flow-optimised reactor design ensures direct and virtually loss-free UV radiation
- High-quality V4A stainless steel housing for stability and good reflection rates
- Extremely easy installation with stainless steel connection elements
- Flexible connection upstream or downstream of the ProfiClear filter system — as well as for other gravity-fed applications
- In the event of pond enlargements or an increase in fish stock, extension with additional Bitron Premium UVC devices is possible at any time
- Visual function check
- Horizontal or vertical setup possible
- Clear water guarantee when used in conjunction with OASE ProfiClear filters
- Depending on requirements, the Bitron Premium 120 W and 180 W lamps can be switched on individually
- Suitable for ponds up to 90.0 m3
- CLEARS EVERYTHING UP: Extremely effective elimination of algae and pathogenic bacteria; works in the same way as an immersion UVC
- WELL PROTECTED: 100% protection against eye damage
- HIGHLY EFFECTIVE: Exceptionally effective sterilisation thanks to the extra-long retention time of the water in the Bitron
- PERFECTED: The flow-optimised reactor design ensures direct and almost loss-free UV radiation
- GUARANTEED: Clear water guarantee when used in conjunction with OASE ProfiClear filters
- YOU CHOOSE: Horizontal or vertical installation
- FLEXIBLE: Can be connected either upstream or downstream of the ProfiClear filter system – also applies to other gravity-fed applications
- EXPANDABLE: In the event of pond enlargements or increase in fish stock, expansion with additional Bitron Premium UVC devices is no problem
- CHECK: Visual function check
- SIMPLE: Particularly straightforward installation using stainless steel fasteners
- YOU CHOOSE: Depending on the requirements, the lamps of the Bitron Premium 120 W and 180 W can be switched on individually
| Dimensions (L x W x H) | mm | 700 x 290 x 205 |
| Rated voltage | 220 - 240 V / 50/60 Hz | |
| Power consumption | IN | 60 |
| Power cable length | m | 5.00 |
| Net weight | kg | 7.80 |
| Limited Warranty | Years | 2 |
| UVC power | IN | 60 |
| UVC operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Units | 1 |
| Inlet connections | DN 110 | |
| Number of outlets | Units | 1 |
| Outlet connections | DN 110 | |
| Max. flow rate | l/h | 40000 |
| Max. operating pressure | bar | 0.6 |
| Rec. flow rate (gravity-fed) | l/h | 16500 |
| Suitable for ponds up to max. | m 3 | 90.0 |
| Suitable for ponds with fish stock | m 3 | 50.0 |
| Suitable for ponds with koi | m 3 | 33.0 |
| Material | Plastic / stainless steel | |
| Connection to | AquaMax, ProfiClear | |
| Type of use | Gravity fed system, Pump fed system |
