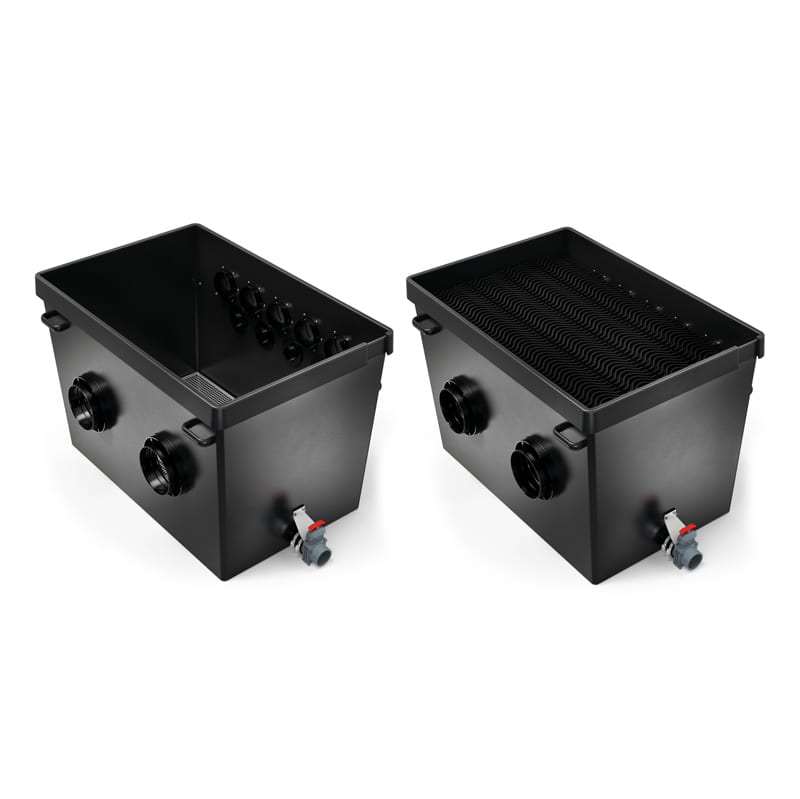

Oase ProfiClear Premium XL Discharge Module Pond Filter Pump Fed
Professional modular filter system for large natural and swimming ponds up to 530 m³ and koi ponds up to 100 m³ for excellent water quality in the smallest of spaces - thanks to particularly high filter performance with intelligent control functions and intelligent self-cleaning function for unique freedom from maintenance (drum filter module). All settings can be conveniently controlled via APP by integrating the system into the OASE Control System (EGC). The degradation of pollutants is even more effective thanks to high-performance filter media OASE PondPads and develops its optimum performance in the new fluidized bed process (moving bed). For large pond owners who want more, high degradation rates of ammonium, ammonia, nitrite and nitrate through larger moving bed modules for up to 150 l Hel-X ensure even more performance, especially in combination with the new biofilter media OASE PondPads.
- Mature, professional technology with more than three years of development time
- Larger pump and UVC chamber for easy integration of: AquaMax Eco Expert and AquaMax Eco Titanium filter pumps and new Bitron Premium UVC clarifiers
- Greater flexibility in connection due to 5 x DN110 and 4 x Tradux (2" inlets)
- Integrated bottom drain with high quality, finely engineered slide valve
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product »Made in Germany«
| Dimensions (L x W x H) | mm | 1330x875x820 |
| Net weight | kg | 87.00 |
| Warranty | Years | 2 + 1 |
| material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 180 |
| Number of outlets | Units | 9 |
| Outlet connections | 4 x 2“ / 5 x DN 110 | |
| Sludge discharge connections | DN75 | |
| Min. flow rate | l/h | 25000 |
| Max. flow rate | l/h | 66000 |
| Connection to | Bitron Premium, ProfiClear Premium DF-XL gravity, ProfiClear Premium XL Moving Bed | |
| Installation height above water level | cm | 8.5 |
| Type of use | Pump fed system | |
| Other | – | |
| Temperature display | No | |
| Inlet connections | 180mm |
If you have any questions about Oase ProfiClear Premium XL Discharge Module Pond Filter pump Fed, please contact us and a member of our friendly store team will be able to help.
Love Koi and ponds? Why not check out our sister site Shirley Koi where you'll find our finest premium Japanese Koi available for sale!
Additional information
| Brands | OASE |
|---|
