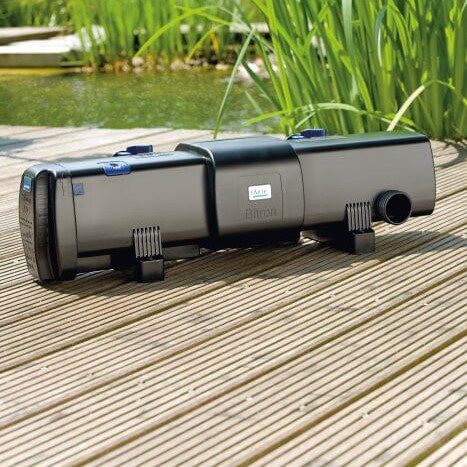

Bitron 110C UV Clarifier

Description

Bitron 110C UV Clarifier

• SELF-CLEANING: Highly effective UV radiation at all times thanks to patented, independent lamp cleaning

• QUICK-RELEASE CLOSURE: For easy opening of the lamp housing. To protect against eye damage, a safety switch automatically deactivates the UVC lamp

• WELL PROTECTED: 100% protection against eye damage

• AUTOMATIC: Due to the water flow, the cleaning rotor is continuously and automatically guided around the quartz glass tube and thus prevents dirt deposits

• INCLUDED: High-quality UVC lights

• QUALITY: High-quality design with impact-resistant plastic

• EYE-CATCHING: Visual function check of the UVC light

• GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)

• INTEGRATED: Magnets for protecting the filter equipment from lime deposits

• SYNCHRONOUS: Individual regulation of the water flow rate allows you to optimally tune the Bitron C to the connected filter pump

The OASE Bitron C 110 W UVC pre-clarifier eliminates floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional safety. With a power consumption of 110 watts, 12,000 l/h can flow past the UVC tube without a bypass. The flow rate can be individually adjusted and regulated. The OASE Bitron C 110 W UVC pre-clarifier is available complete with universal stepped hose nozzle from ¾” to 2″. The cable is 5 m long. A flow nozzle optimises the flow to the cleaning rotor. The rated voltage is 230 V/50 Hz. Ideal for connection to ProfiClear, BioTec 30 and BioTec ScreenMatic 36 and comes with a 2-year guarantee.

Dimensions (L x W x H)	mm	730 x 215 x 200
Rated voltage		220 – 240 V / 50/60 Hz
Power consumption	W	110
Power cable length	m	5.00
Net weight	kg	6.70
Limited Warranty	Years	2
UVC power	W	110
Temperature display		No
UVC Bypass		manually
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	19 / 25 / 32 / 38 / 50
Inlet connections		¾”, 1″, 1 ¼”, 1 ½”, 2″
Number of outlets	Units	2
Connections, outlet	mm	25 / 32 / 38
Outlet connections		1″, 1 ¼”, 1 ½”
Min. flow rate	l/h	12000
Max. flow rate	l/h	40000
Max. operating pressure	bar	1
Suitable for ponds up to max.	m3	110.0
Suitable for ponds with fish stock	m3	55.0
Suitable for ponds with koi	m3	27.5
Connection to		BioTec 30, BioTec ScreenMatic2 90 – 145000, ProfiClear
