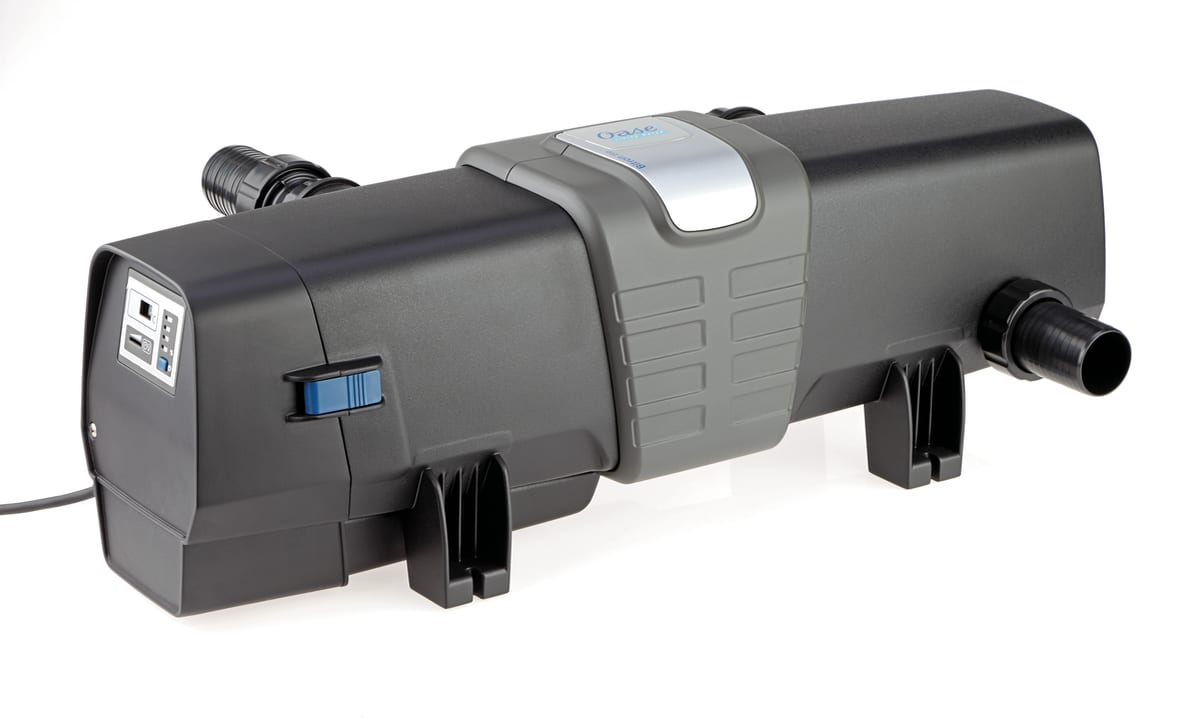

Oase Bitron Eco 180 Watt
- FEASIBLE: Easy connection to other 2" filter systems
- NEW: Large-volume UVC housing with new design and organic shape, for a particularly long retention time and treatment of the water
- BYPASS: The integrated bypass membrane regulates the water distribution fully automatically based on the water flow and adapts to changing conditions such as the Seasonal Flow Control System
- AUTOMATIC: The control unit not only automatically shows you the current status of your lamps and the water temperature, it also allows you to adjust the output according to your needs
- GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)
- CLIMATE PROTECTION: Eco mode saves up to 525 kg CO2/year*2
- UP TO 50 PERCENT LESS: The eco control system enables maximum energy efficiency with such a high savings potential
- ANY TIME: Fully effective UVC radiation thanks to patented automatic cleaning of the UV lamp
- EFFECTIVE: Highly intensive treatment of suspended algae, turbidity and harmful bacteria in pond water
- WELL PROTECTED: 100% protection against eye damage
Concentrated UVC power! The revolutionary Oase Bitron Eco UVC clarifier with 180 W power removes floating algae and harmful bacteria with the highest efficiency. Thanks to the automatic bypass regulation and the significantly larger housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l/h. The clever Eco control regulates the irradiation duration depending on seasonal requirements. This can result in energy savings of up to 50%! You can also save on light bulbs, because the newly developed 60W UVC lamp has a 50% longer service life of 12,000 hours. In addition, changing the lamp is now child's play and can be done without dismantling the quartz glass. Also included is the tried and tested automatic cleaning system, an LED UVC control and a display for lamp changes and water temperature. Thanks to the IP68 protection class, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage is 220 - 240/50 Hz. The Bitron Eco allows a 1 ½" and 2" connection. Ideal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 36. You receive a 2-year guarantee + 1-year requirement guarantee.
Technical data
| Dimensions (L x W x H) | mm | 725 x 227 x 248 |
| Rated voltage | 220 - 240 V / 50/60 Hz | |
| Power consumption | IN | 180 |
| Power cable length | m | 5.00 |
| Net weight | kg | 8.25 |
| Limited Warranty | Years | 2 + 1 |
| UVC power | IN | 180 |
| Temperature display | Digital | |
| UVC Bypass | automatic | |
| UVC operating hours meter | 12000 h | |
| Function check | LED | |
| Number of inlets | Units | 1 |
| Inlet connections | mm | 38 / 50 |
| Inlet connections | 1 ½", 2" | |
| Number of outlets | Units | 1 |
| Connections, outlet | mm | 38 / 50 |
| Outlet connections | 1 ½", 2" | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 50000 |
| Max. operating pressure | bar | 1 |
| Suitable for ponds up to max. | m 3 | 180.0 |
| Suitable for ponds with fish stock | m 3 | 90.0 |
| Suitable for ponds with koi | m 3 | 45.0 |
| Connection to | BioTec 30, BioTec ScreenMatic2 145000, ProfiClear |
