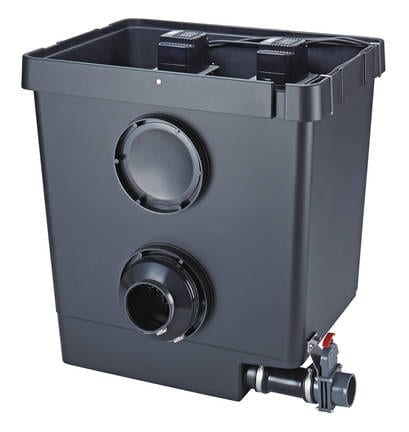

Proficlear Pump Chamber Compact/Classic

Ref: OA42913


The Proficlear Pump chamber  is designed for use with the proficlear compact and classic gravity systems. It allows for easy installation of the return pumps and UV’s without the need to dry mount or wall mount them separately.

Designed for use with the Aquamax Eco Gravity pump range and the  Bitron Gravity 55 UVC.

Manufactured from high quality GRP Duroplast and stainless steel it comes with easily adaptable fittings so can be used on other Filtration systems if necessary.

Technical data:

Dimensions (L x W x H) mm 830 x 665 x 820
Net weight kg 35.00
Guarantee (+ request guarantee) Years 2 + 1
Material GRP Duroplast/stainless steel
Number of inlets Unit 2
Connection inlet 1 x DN 185 + 2 x DN 110
Connection to AquaMax Eco Gravity, Bitron Gravity, ProfiClear Classic
Number of outlets Unit 3
Connections, outlet 1 x 2″ / 2 x DN 110
Connections, sludge discharge DN 75
Max. flow rate l/h 25000
Type of use Gravity fed system, Pump fed system
Installation height above water level cm 10.5
Other Pollutant discharge incl. slide valve
